The Tesla Model Y uses a set of two stacked interior cabin air filters located behind the lower centre console on the passenger side. They sit in the heating, ventilation and air conditioning module, and they are what stop pollen, industrial fallout, road dust and other particles entering the cabin through the vents.
Tesla recommends replacing these filters every two years, with a shorter annual interval applied in regions with high pollution. Three details decide whether a replacement goes well: the upper filter comes out first and the lower filter goes in first, the arrows on both new filters must face the rear of the vehicle, and the procedure differs depending on whether your car was built before or after approximately February 2025.
One clarification worth making at the outset, because it is frequently muddled online: the cabin air filters and the HEPA filter are two different things, in two different places, with two different replacement procedures. The sections below cover both and keep them separate.
Where Is the Model Y Cabin Air Filter Located?
The Model Y cabin air filters are located behind the right-hand side panel of the lower centre console, reached from the front passenger footwell. Nothing is visible until you move the seat and remove a panel, which is why so many owners assume the car has no accessible filter at all.
Getting to them follows a set sequence. You turn off the climate control system, open the front right-hand door, move that seat fully rearward and take out the floor mat. That last step matters more than it sounds, since you will be kneeling in the footwell and working above the carpet. It is also the natural moment to notice how much grit has accumulated under the mat, which is one argument for a fitted set of Model Y floor mats that lift out and rinse.
From there the right side panel of the centre console releases from the top down, exposing the filter cover on the HVAC module behind it.
How Many Cabin Filters Does a Model Y Have?
A Model Y has two cabin air filters, an upper and a lower, stacked within the HVAC module. They work as a pair rather than as a primary and a spare, so both are replaced together.
The stacking is what governs the removal order and it catches people out. The upper filter's pull tabs fold outward, and the upper filter comes out first by pulling it from the HVAC module while avoiding the connectors near the opening. Only then does the lower filter come free, pulled upward and then out. Attempting the lower one first is the single most common reason a first-time replacement stalls.
Installation reverses that logic. The lower filter goes in first and is lowered into place, then the upper filter is inserted above it, then the tabs fold inward so the cover can go back on.
What Is the Difference Between the Cabin Filter and the HEPA Filter?
The cabin air filters and the HEPA filter are separate filters in separate locations with separate replacement procedures. Tesla documents them as two distinct jobs, and conflating them is the most common error in online guidance on this topic.
| Cabin air filters | HEPA filter | |
|---|---|---|
| Quantity | Two, stacked upper and lower | Separate single element |
| Location | HVAC module behind the right console panel | Separate location, accessed by its own procedure |
| Fitted to | Every Model Y | Equipped vehicles only |
| Replacement job | Documented cabin filter procedure | Documented HEPA filter procedure |
| What it handles | Pollen, industrial fallout, road dust, particles | Finer particulate filtration on equipped cars |
| Owner-serviceable | Yes, with care around connectors | Yes, following its own steps |
The practical consequence is that replacing your cabin filters does not replace your HEPA element, and a car without the HEPA option is not missing a filter it should have. If you want both addressed, they are two jobs, which is why we list cabin filter replacement and HEPA filter replacement as separate services rather than as one.
Can You Retrofit HEPA to a Model Y?
HEPA filtration is a factory-equipped feature rather than a straightforward bolt-in addition, since it involves the housing and ducting alongside the element itself. Owners searching for a retrofit are usually better served by fitting a high-grade cabin filter, which improves what the car already has without modifying the HVAC system. A Model Y cabin HEPA air filter in the cabin filter position raises filtration in the slot your car definitely has.
How Often Should You Replace Model Y Cabin Filters?
Replace Model Y cabin air filters every two years, which is Tesla's stated recommendation, with an annual interval applied in regions with high pollution. That two-year figure is a default rather than a ceiling.
Several conditions argue for going sooner. Heavy stop-start traffic pulls exhaust particulate through the filters continuously. A long pollen season loads them quickly in spring. Unpaved roads and construction dust do the same. And through a salted Ontario winter, the fine chloride-laden spray thrown up by traffic reaches the intake along with everything else, which is why cars here often benefit from an annual change rather than a biennial one.
The honest test is the filter itself. Pull it at the two-year mark and look: a filter that is grey and loaded has been working hard and the interval should shorten. One that still looks close to new means you can keep the default.
What Happens if You Don't Change the Cabin Filter?
If you don't change the cabin filter, airflow drops, the climate system works harder, and the cabin starts to smell. None of those is a safety issue, and all of them are noticeable.
Airflow is the first symptom. A loaded filter restricts the air the blower can move, so vents that used to clear a fogged windscreen quickly begin taking longer, and the fan has to run at a higher setting to achieve what a lower one used to. On an electric vehicle that costs a little range, since the climate system draws from the same battery moving the car.
Odour follows. A filter holding two years of organic material in a damp environment becomes a source rather than a barrier, which is when owners describe a musty smell on start-up. And filtration performance itself falls once the media is saturated, so the pollen and dust the filters exist to catch begin passing through.

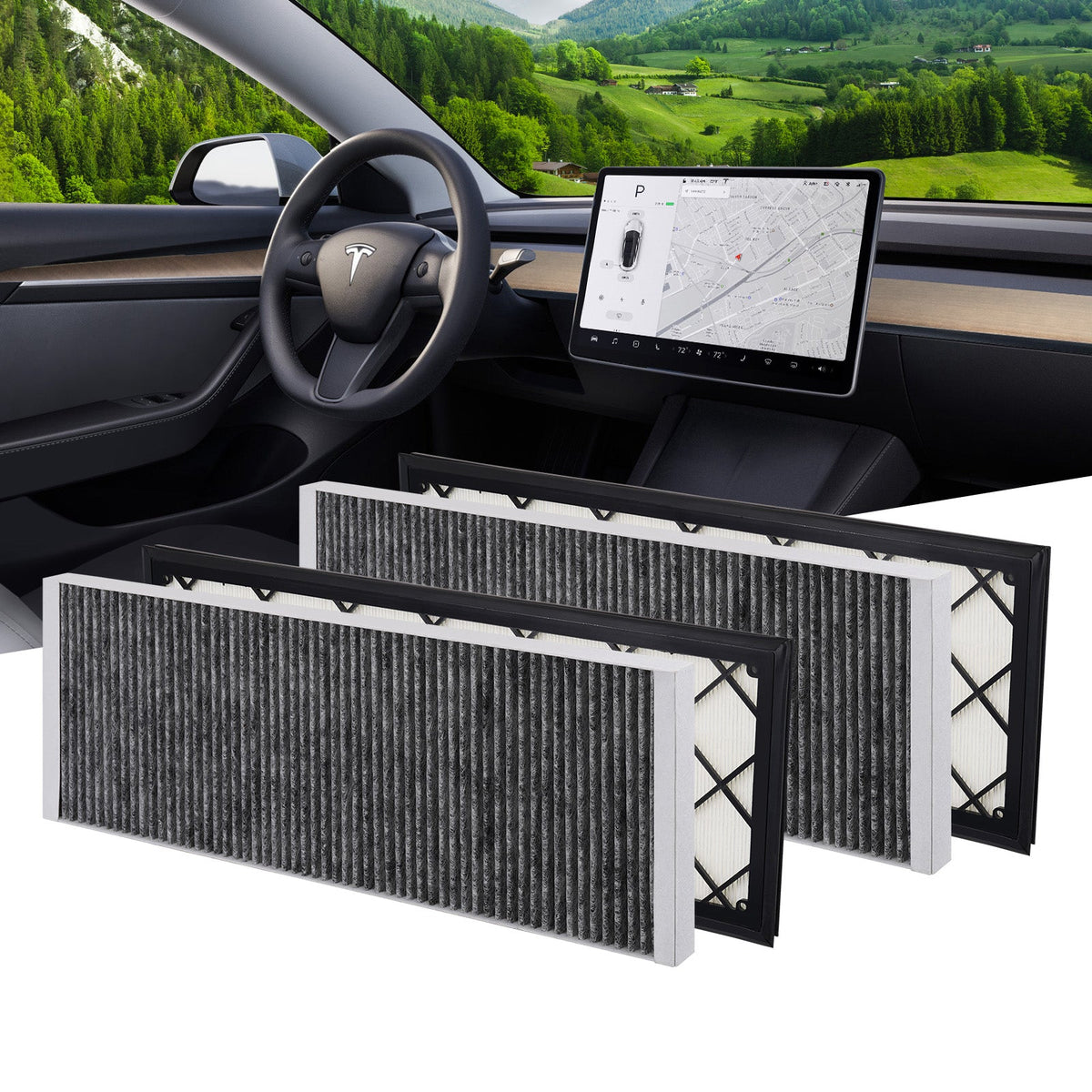

What Are the Model Y Filter Options?
Model Y filter options divide into standard paper elements, higher-grade HEPA-style media, and activated carbon versions. All three fit the same slot; they differ in what they capture and how long they last.
Standard paper filters are the baseline replacement and they do exactly what the car was designed around: pollen, dust and road particulate. Higher-grade multi-layer media captures finer particles, which matters most in heavy traffic and poor air quality. Activated carbon adds an odour-adsorbing layer, which is the option to choose if smells rather than particles are your complaint, since carbon captures gaseous compounds that a particulate filter passes straight through.
The best cabin air filter for a Model Y is therefore the one matched to your actual problem. City driving in traffic argues for higher-grade media. Persistent odours argue for carbon. Rural driving with a long pollen season argues for whichever has the highest particulate rating you can get. Owners running both cars in a household can match specifications across them, since the Model 3 cabin filter occupies the equivalent position in that vehicle.
How Do You Replace Model Y Cabin Air Filters?
Replace Model Y cabin air filters by removing the right console side panel and the footwell cover, taking out the upper filter first, then the lower. Budget an hour for a first attempt and considerably less thereafter.
- Turn off the climate control system before starting.
- Open the front right-hand door, move that seat fully rearward and remove the floor mat.
- Working from top to bottom, carefully release the right side panel from the centre console, using a trim tool on cars built before approximately February 2025.
- Release the push clips or magnets securing the front right-hand footwell cover to the instrument panel.
- Supporting the cover, disconnect its two electrical connectors, one for the light and one for the speaker, pulling on the plastic connector bodies rather than the wires, then set the cover aside.
- On cars built before approximately February 2025, remove the 6 mm screw securing the filter cover to the HVAC module, or squeeze the two tabs at the bottom of the cover where tabs are fitted instead.
- On cars built from approximately February 2025, squeeze the two tabs at the bottom of the cover and tilt it outward to remove.
- Fold the upper filter's pull tabs outward, then pull the upper filter out of the HVAC module, avoiding the connectors near the opening.
- Holding the upper tab on the lower filter, pull it upward and then out.
- Insert the new lower filter first and lower it into place, then insert the new upper filter above it, with the arrows on both facing the rear of the vehicle.
- Fold the tabs inward, refit the filter cover, and on screw-equipped cars tighten the 6 mm screw to 1.2 Nm (0.89 ft-lb).
- Reconnect the two electrical connectors, refit the footwell cover, align the console side panel with its locator slots and press until every clip seats.
- Refit the floor mat, return the seat, and reset the cabin air filter maintenance interval in the vehicle's maintenance summary.
The two connectors in step five are where this job goes wrong. Pulling a footwell cover away with the wires still attached, or disconnecting by tugging the loom rather than the connector, turns a filter change into a wiring repair. Support the cover with one hand throughout.
Which Way Do the Arrows Face?
The arrows on both new filters must face toward the rear of the vehicle. This is the detail most worth getting right, because a filter fitted backwards still slides into the slot, the cover still closes, and nothing tells you anything is wrong.
Filter media is directional by construction, with a coarser side meant to meet the incoming air first and a finer side downstream. Reversed, the fine layer takes the full dust load immediately and clogs far sooner, and the element captures less while restricting more. Check the arrows on both filters before the cover goes back on, since it is a five-minute fix at that point and a repeat of the whole job later.
How Do You Reset the Maintenance Interval?
Reset the cabin air filter interval in the vehicle's maintenance summary on the touchscreen once the job is complete. Skipping it means the car continues counting from the previous change and will keep reporting an interval that no longer matches reality, which matters mostly for the next owner or the next person servicing it. It takes seconds and it belongs in the procedure rather than as an afterthought.
Why Does the Cabin Still Smell After a New Filter?
The cabin can still smell after a new filter because the odour source is often the air conditioning evaporator core rather than the filter itself. A musty or damp smell that returns within days of a fresh filter is the classic sign.
The mechanism is straightforward. The evaporator core runs cold, so moisture condenses on its fins every time the air conditioning operates. In a dark, damp, enclosed space that moisture supports microbial growth, and the air you breathe passes directly over it before reaching the vents. A new filter downstream of that does nothing about the source, which is why owners replace filters, smell an improvement for a week, and find the odour back.
The fix is to clean and deodorize the evaporator core with a dedicated foaming cleaner, and the right moment is immediately after removing the old filters, while the access is already open. Running the fan without air conditioning for the last few minutes of a journey also helps long term, since it dries the core before the car sits.
Should You Replace It Yourself or Have It Done?
Replace the filters yourself if you are comfortable releasing trim panels and handling two electrical connectors; have it done if you would rather not. The job is genuinely owner-serviceable and it is also genuinely easy to damage a clip or a connector on a first attempt.
Three things push people toward having it done. Trim clips on a car this quiet are unforgiving, and a panel refitted with one clip unseated produces a rattle that will irritate you for years. The connectors carry a real risk of damage if pulled wrongly. And the February 2025 build change means guidance written for one version of the car does not match the other, which is confusing mid-job with the console already apart.
We handle cabin filter replacement at the shop here in North York, and it pairs naturally with a general inspection if the car is due anything else. Either way, our cabin air filters are the same parts whether you fit them or we do.
Frequently Asked Questions
How Long Does It Take to Replace a Model Y Cabin Filter?
A first attempt takes around an hour, mostly spent on the console panel and footwell cover rather than on the filters themselves. A second attempt takes perhaps twenty minutes, since you already know how the clips release and which connector goes where. A shop doing them regularly is considerably faster than either.
How Much Does a Model Y Cabin Filter Replacement Cost?
Cost splits into two parts rather than one figure: the filters themselves, which vary by grade from standard paper through higher-grade media to activated carbon, and the labour if you are not fitting them. Doing it yourself costs only the parts. Which filter grade you choose should follow your driving conditions rather than your budget, since the price difference between grades is small next to the two years you will live with the result.
Can You Buy Cabin Filters From Tesla Directly?
Yes, Tesla sells cabin filters through its own shop, and third-party suppliers offer standard, higher-grade and activated carbon alternatives that fit the same slot. What matters is that the filter is specified for the Model Y and carries clear directional arrows, since a generic element trimmed to fit will not seal against the module.
Will a General Auto Shop Change a Tesla Cabin Filter?
Many general shops will, since the job is mechanical rather than electronic and requires no diagnostic access. What matters is whether they have done it on a Model Y before, because the console panel, the footwell connectors and the two-filter stacking order are specific to this car. Ask before booking rather than after the panel is off.
Can You Clean a Cabin Filter Instead of Replacing It?
You can knock loose debris off a cabin filter, and it is not a substitute for replacement. The media traps fine particles within its structure rather than on its surface, so vacuuming or tapping removes only what you can see while the restriction stays. Compressed air is worse, since it can rupture the media and leave you with a filter that passes everything.
How Do You Avoid the Common Filter Replacement Mistakes?
You avoid them by checking your build date before starting so you know whether to expect a screw or tabs, supporting the footwell cover while disconnecting its two connectors by the plastic, removing the upper filter before the lower, fitting the lower filter before the upper, confirming the arrows point rearward on both, and resetting the maintenance interval when you finish.
The Bottom Line
The Model Y's cabin air filtration is two stacked filters behind the right side of the lower console, reached through the passenger footwell, and Tesla asks for them every two years. In heavy traffic, a long pollen season or a salted winter, annual is the better interval. The job is owner-serviceable, and the details that decide whether it goes smoothly are the removal order, the two electrical connectors on the footwell cover, the build-date split around February 2025, and the arrows pointing rearward.
Keep the HEPA element separate in your mind from the cabin filters, since they are different parts with different procedures and not every car has both. And if a musty smell survives a fresh filter, the evaporator core is the thing to address rather than the filter you just bought. We are in North York, we ship parts across Canada and into the United States, and we fit filters here as well as supplying them. Have a look at the Model Y interior range or our shipping questions page, and if you would rather have the job done than do it, reach us at Tesmods or through our contact page.
